Product Details

Product Standards
The development and manufacturing processes strictly implement multiple industry standards and technical specifications to meet compliance requirements across diverse operating conditions:
National Supervision Specification: Compliant with the technical specification TICW 6-2009 from the China Supervision Test Center for Product Quality of Cables and Cords.
Industry Standard: Follows the production requirements of JB/T 13486-2018 (Computer and Instrumentation Cables).

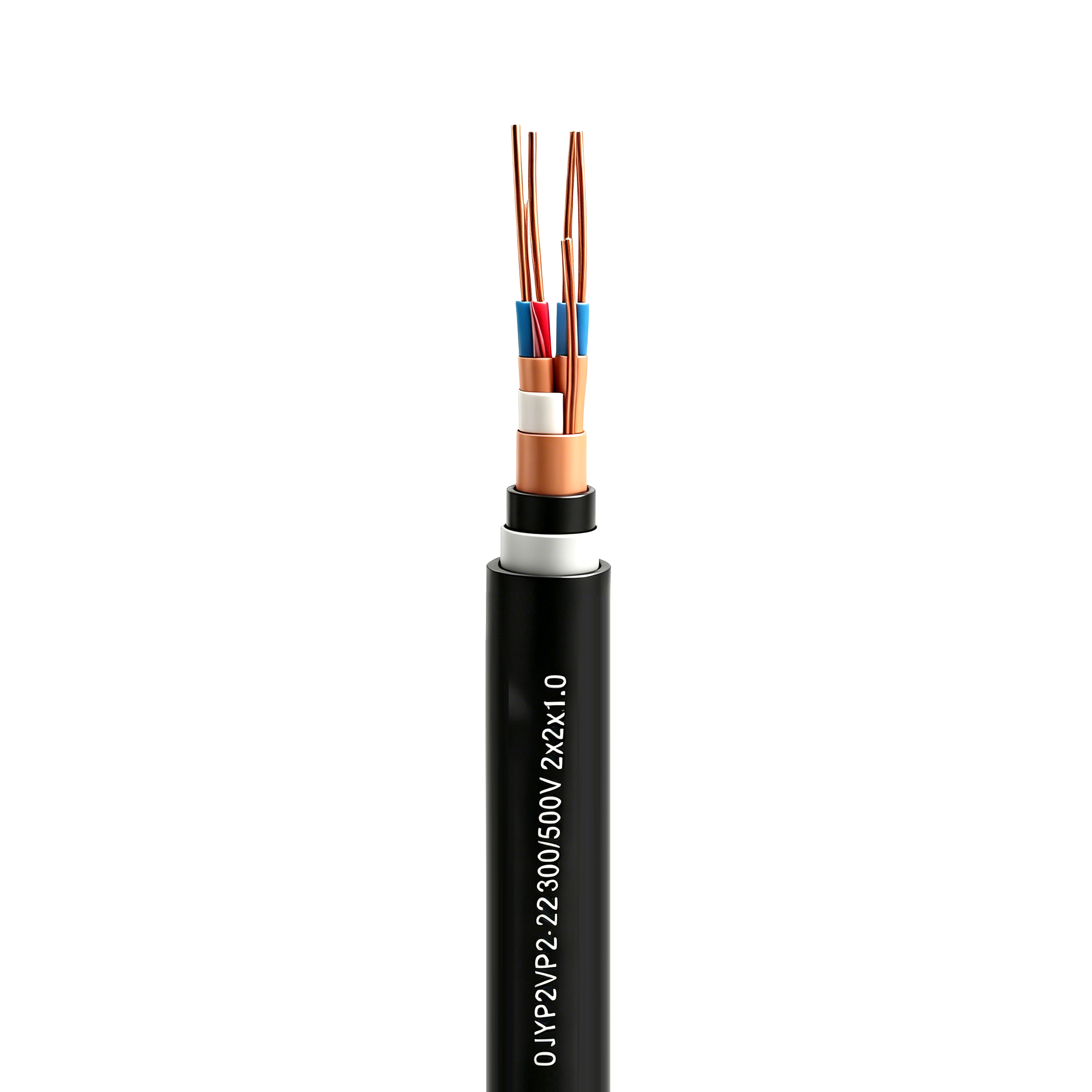

Product Structure and Material Characteristics
High-Conductivity Conductors: Features high-quality electrical copper wire. Based on the installation method, it is available in rigid conductor structures for fixed laying or flexible conductor structures suitable for mobile applications.
Diverse Insulation Materials: To address varying thermal loads and chemical protection needs, insulation options include Polyvinyl Chloride (PVC), Polyethylene (PE), Cross-linked Polyethylene (XLPE), Fluoroplastics, and Silicone Rubber.
Precision Shielding Structure: To counter complex electromagnetic environments, cables can be designed with individual screening, total screening, or a combination of both. Shielding formats include copper wire braiding, helically applied copper tape, or aluminum-plastic composite tape wrapping to minimize crosstalk between circuits.
Protective and Armored Layers: Depending on the required level of mechanical protection, options for steel tape armor or steel wire armor structures are available to enhance the cable's compression and tensile strength.

Operating Characteristics & Performance Advantages
Voltage and Environmental Adaptability: The rated voltage ($U_0/U$) is 300/500V. These cables can operate stably in fixed or mobile installations provided the relative humidity does not exceed 80%.
Wide Operating Temperature Range: Maximum continuous operating temperatures vary significantly by material:
Fluoroplastic insulation: Up to 200°C.
Silicone rubber insulation: Up to 180°C.
Cross-linked polyethylene (XLPE) insulation: Up to 90°C.
PVC and Polyethylene insulation: Typically 70°C.
Installation Specifications: The recommended ambient temperature during installation should be no lower than 0°C to ensure the physical stability of the insulation and sheath.
Bending Radius Restrictions:
Unarmored or non-screened flexible cables: Bending radius should be at least 6 times the outer diameter.
Armored or screened cables: Bending radius should be at least 12 times the outer diameter to maintain the integrity of internal shielding layers.

Core Application Areas
Based on its excellent anti-interference characteristics and stable electrical performance, this series is widely used in:
Computer System Connectivity: Data transmission, control, and information exchange networks for various electronic computers.
Automation Control Systems: Power transmission or feedback links for distribution units, electrical instruments, and automated meter equipment.
Complex Signal Links: With a rich selection of materials (such as heat-resistant and anti-corrosion models), these cables are ideal for chemical, power, and metallurgical industries where signal transmission quality is paramount.

Type and name of cable

Type	Name	Application
DJVV	Copper conductor PVC-insulated PVC sheathed computer cable	Fixed useing
DJVVR	Copper conductor PVC-insulated PVC sheathed computer flexible cable	Moveable using
DJVV22	Copper conductor PVC-insulated steel tape armored PVC sheathed computer cable	Fixed useing
DJVPV	Copper conductor PVC-insulated copper braided pair PVC sheathed computer cable	Fixed useing
DJVP2V	Copper conductor PVC-insulated copper tape pair PVC sheathed computer cable	Fixed useing
DJVP3V	Copper conductor PVC-insulated aluminum-plastic tape pair PVC sheathed computer cable	Fixed useing
DJVPVR	Copper conductor PVC-insulated copper braided pair PVC sheathed computer flexible cable	Moveable using
DJVP2VR	Copper conductor PVC-insulated copper tape pair PVC sheathed computer flexible cable	Moveable using
DJVP3VR	Copperconductor PVC-insulated aluminum-plastic tape pair PVC sheathed computer flexible	Fixed useing
DJVPV22	Copper conductor PVC-insulated copper braided pair steel tape armored PVC sheathed computer cable	Fixed useing
DJVP2V22	Copper conductor PVC-insulated copper tapes pair steel tape armored PVC sheathed computer cable	Fixed useing
DJVP3V22	Copper conductor PVC-insulated aluminum-plastic tape pair steel tape armored PVC sheathed computer cable	Fixed useing
DJVP4V22	Copper conductor PVC-insulated steel-plastic tape pair steel tape armored PVC sheathed computer cable	Fixed useing
DJVVP	Copper conductor PVC-insulated copper braided common shield PVC sheathed computer cable	Fixed useing
DJVVP2	Copper conductor PVC-insulated copper tape common shield PVC sheathed computer cable	Fixed useing
DJVVP3	Copper conductor pyc insulated aluminum-dlastic tape common shield Pvc sheathe computer cable	Fixed useing
DJVVP4	Copper conductor PVC-insulated steel tape(or aluminum-plastic tape) common shield PVC sheathed computer cable	Fixed useing
DJVVP5	Copper conductor PVC-insulated aluminum-plastic tape +copper wireless common shield PVC sheathed computer cable	Fixed useing
DJVVRP	Copper conductor PVC-insulated aluminum-plastic tape comon shield PVC sheathed computer cable	Moveable using
DJVVRP2	Copper conductor PVC-insulated copper tape common shield PVC sheathed computer cable	Moveable using
DJVVRP3	Copper conductor PVC-insulated aluminum-plastic tape common shield PVC sheathed computer cable	Moveable using
DJVVRP5	Copper conductor PVC-insulated aluminum-plastic tape +copper wire common shield PVC sheathed computer cable	Moveable using
DJVVP22	Copper conductor PVC-insulated copper braided common shield steel tape armored PVC sheathed comouter cable	Fixed useing
DJVVP2-22	Copper conductor PVC-insulated copper tape common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJVVP3-22	Copper conductor PVC-insulated aluminum-dlastic tape common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJVPVP	Copper conductor PVC-insulated copper wire braided pair and common shield PVC sheathed computer cable	Fixed useing
DJVP2VP2	Copper conductor PVC-insulated copper tape pair and common shield PVC sheathed computer cable	Fixed useing
DJVP2VP2-22	Copper conductor PVC-insulated copper tape pair and common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJVP3VP3-22	Copper conductor PVC-insulated aluminu-plastic tape pair and cotmon shield stee tape armored PVC sheathed computer cable	Fixed useing
DJVP4VP4-22	Copper conductor PVC-insulated steel-plastic tape pair and common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYV	Copper conductor POLY insulated POLY sheathed computer cable	Fixed useing
DJYVR	Copper conductor POLY insulated steel tape armored PVC sheathed computer cable	Moveable using
DJVV22	Copper conductor POLY insulated copper wire braided pair PVC sheathed computer cable	Fixed useing
DJYPV	Copper conductor PVC-insulated PVC sheathed computer cable	Fixed useing
DJYP2V	Copper conductor POLY insulated steel tape armored PVC sheathed computer cable	Fixed useing
DJYP3V	Copper conductor POLY insulated aluminum-plastic tape pair PVC sheathed computer cable	Fixed useing
DJYP4V	Copper conductor POLY insulated steel-plastic tape pair PVC sheathed computer cable	Fixed useing
DJYPVR	Copper conductor POLY insulated copper wire braided pair PVC sheathed computer flexible cable	Moveable using
DJYP2VR	Copper conductor POLY insulated copper tape pair PVC sheathed computer flexible cable	Moveable using
DJYP3VR	Copper conductor POLY insulated aluminum plastic tape pair PVC sheathed computer flexible cable	Moveable using
DJYPV22	Copper conductor POLY insulated copper wire braided pair steel tape armored PVC sheathed computer cable	Fixed useing
DJYP2V22	Copper conductor POLY insulated copper tape pair steel tape armored PVC sheathed computer cable	Fixed useing
DJYP3V22	Copper conductor POLY insulated aluminum-plastic tape pair steel tape armored PVC sheathed computer cable	Fixed useing
DJYVP	Copper conductor POLY insulated copper wire braided common shield PVC sheathed computer cable	Fixed useing
DJWP2	Copper conductor POLY insulated copper tape common shield PVC sheathed computer cable	Fixed useing
DJYVP3	Copper conductor POLY insulated aluminum-plastic tape common shield PVC sheathed computer cable	Fixed useing
DJYVP4	Copper conductor POLY insulated steel-plastic tape common shield PVC sheathed computer cable	Fixed useing
DJYVP5	Copper conductor POLY insulated aluminum-plastic tapesteel braided common shield PVC sheathed computer cable	Fixed useing
DJYVRP	Copper conductor POLY insulated aluminum-plastic tape steel braided common shield PVC sheathed computer cable	Moveable using
DJYVRP2	Copper conductor POLY insulated copper tape common shield Pvc sheathed computer cable	Moveable using
DJYVRP3	Copper conductor POLY insulated aluminum-plastic tape common shield PVC sheathed computer flexible cable	Moveable using
DJYVP22	Copper conductor POLY insulated copper wire braided common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYVP2-22	Copper conductor POLY insulated copper tape common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJWP3-22	Copper conductor POLY insulated aluminum-plastic tape common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYPVP	Copper conductor POLY insulated copper wire braided pair and commonshield PVC sheathed computer cable	Fixed useing
DJYP2VP2	Copper conductor POLY insulated copper tape pair and common shield PVC sheathed computer cable	Fixed useing
DJYP3VP3	Copper conductor POLY insulated aluminum-plastic tape pair and common shield PVC sheathed computercable	Fixed useing
DJYP4VP4	Copper conductor POLY insulated steel-plastic tape pair and common shield PVC sheathed computer cable	Fixed useing
DJYPVRP	Copper conductor POLY insulated copper wire braided pair and common shield PVC sheathed computer flexible cable	Moveable using
DJYP2VRP2	Copper conductor POLY insulated copper tape pair and common shield PVC sheathed computer flexible cable	Moveable using
DJYP3VRP3	Copper conductor POLY insulated aluminum-plastic tape pair and common shield PVC sheathed computer flexible cable	Moveable using
DJYPVP22	Copper conductor POLY insulated copper wire braided pair and common shield PVC sheathed computer cable	Fixed useing
DJYP2VP2-22	Copper conductor POLY insulated copper tape pair andcommon shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYP3VP3-22	Copper conductor POLY insulated aluminum-plastic tape pair and common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYP4VP4-22	Copper conductor POLY insulated steel-plastic tape pair and common shiel steel tape armored PVC sheathed computer cable	Fixed useing
DJYY	Copper conductor POLY insulated POLY sheathed computer cable	Fixed useing
DJYYR	Copper conductor POLY insulated POLY sheathed computer flexible cable	Moveable using
DJYY23	Copper conductor POLY insulated steel tape armored POLY sheathed computer cable	Fixed useing
DJYPY	Copper conductor POLY insulated copper wire braided pair POLY sheathed computer cable	Fixed useing
DJYPY22	Copper conductor POLY insulated copper wire braided pair steel tape armored POLY sheathed PVC sheathed inner computer cable	Fixed useing
DJYPYP	Copper conductor POLY insulated copper wire braided pair and common shield POLY sheathed computer cable	Fixed useing
DJYPYRP	Copper conductor POLY insulated copper wire braided pair and common shield POLY sheathed computer flexible cable	Fixed useing
DJYP2Y	Copper conductor POLY insulated copper tape pair POLY sheathed computer cable	Fixed useing
DJYP2Y23	Copper conductor POLY insulated copper tape pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYP3Y	Copper conductor POLY insulated aluminum-plastic tape pair POLY sheathec computer cable	Fixed useing
DJYP3Y23	Copper conductor POLY insulated aluminum-plastic tape pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYP4Y	Copper conductor POLY insulated steel-plastic tape pair POLYsheathed computer cable	Fixed useing
DJYP4Y23	Copper conductor POLY insulated steel-plastic tape pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYYP	Copper conductor POLY insulated copper wire braided common shield POLY sheathed computer cable	Fixed useing
DJYYP2	Copper conductor POLY insulated copper wire braided common shield POLY sheathed computer cable	Fixed useing
DJVYP3	Copper conductor POLY insulated aluminumplastic tape common shield POLY sheathed computer cable	Fixed useing
DJYYP4	Copper conductor POLY insulated steel-plastic tape common shield POLY sheathed computer cable	Fixed useing
DJYYP5	Copper conductor POLY insulated aluminum-plastic tapecopper wire braided common shield POLY sheathed computer cable	Fixed useing
DJVYP23	Copper conductor POLY insulated copper wire braided common shield steel tape armored POLY sheathed computer cable	Fixed useing
DJYP2YP2	Copper conductor POLY insulated copper tape pair and common shield POLY sheathed computer cable	Fixed useing
DJYP2YP2-23	Copper conductor POLY insulated copper tape pair and common shield steel tape armored Poly sheathed computer cable	Fixed useing
DJYP3YP3	Copper conductor POLY insulated aluminum-plastic tape pair and common shield POLY sheathed computer cable	Fixed useing
DJYP3YP3-23	Copper conductor POLY insulated aluminum-plastic tape pair and common shield steel tape armored POLY sheathed computer cable	Fixed useing
DJYP4YP4	Copper conductor POLY insulated steel-plastic tape pair and comon shield POLY sheathed computer cable	Fixed useing
DJYP4YP4-23	Copper conductor POLY insulated steel-plastic tape pair and common shield steel tape armored POLY sheathed computer cable	Fixed useing
DJYPYR	Copper conductor POLY insulated copper wire braided pair POLY sheathed computer cable	Moveable using
DJYP2YR	Copper conductor POLY insulated copper tape pair POLY sheathed computer cable	Moveable using
DJYP3YR	Copper conductor POLY insulated aluminum-plastic tape pair POLY sheathed computer cable	Moveable using
DJYP2YRP2	Copper conductor POLY insulated copper tape pair and common shield POLY sheathed computer cable	Moveable using
DJYP3YRP3	Copper conductor POLY insulated aluminum-plastic tape pair and common shield POLY sheathed computer flexible cable	Moveable using
DJYJY	Copper conductor XLPE insulated POLY sheathed computer cable	Fixed useing
DJYJYR	Copper conductor XLPE insulated POLY sheathed computer flexible cable	Moveable using
DJYJY23	Copper conductor XLPE insulated steel tape armored POLY sheathed computer cable	Fixed useing
DJYJPY	Copper conductor XLPE insulated copper wire braided pair POLY sheathed computer cable	Fixed useing
DJYJPY23	Copper conductor xiPe insulated copper wire braided pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYJPYP	Copper conductor XLPE insulated copper wire braided pair and common shield steel tape armored Poly sheathed computer cable	Fixed useing
DJYJPYRP	Copper conductor XLPE insulated copper wire braided pair and common shield POLY sheathed computer cable	Moveable using
DJYJP2Y	Copper conductor XLPE insulated copper tape pair POLY sheathed computer cable	Fixed useing
DJYJP2Y23	Copper conductor XLPE insulated copper tape pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYJP3Y	Copper conductor XLPE insulated copper tape pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYJP3Y23	Copper conductor XLPE insulated aluminum plastic pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYJP4Y	Copper conductor XLPE insulated steel plastic pair POLY sheathed computer cable	Fixed useing
DJYJP4Y23	Copper conductor XLPE insulated steel-plastic pair steel tape armored POLY sheathed computer cable	Fixed useing
DJYJYP	Copper conductor XLPE insulated copper wire braided common shield s POLY sheathed computer cable	Fixed useing
DJYJYP2	Copper conductor XLPE insulated copper tape common shields POLY sheathed computer cable	Fixed useing
DJYJYP3	Copper conductor XLPE insulated aluminum plastic common shield s POLY sheathed computer cable	Fixed useing
DJYJYP4	Copper conductor XLPE insulated steel-plastic common shield s POLY sheathed computer cable	Fixed useing
DJYJYP5	Copper conductor XLPE insulated aluminum plastic copper wire braided common shield s POLY sheathed computer cable	Fixed useing
DJYJYP23	Copper conductor XLPE insulated copper wire braided common shield POLY sheathed computer cable	Fixed useing
DJYJP2YP2	Copper conductor XLPE insulated copper tape pair and common shield POLY sheathed computer cable	Fixed useing
DJYJP2YP2-23	Copper conductor XLPE insulated copper tape pair and common shield steel tape armored POLY sheathed computer cable	Fixed useing
DJYJP3YP3	Copper conductor XLPE insulated aluminum-plastic tape pair and common shield POLY sheathed computer cable	Fixed useing
DJYJP3YP3-23	Copper conductor XLPE insulated aluminum-plastic tape pair and common shield steel tape armored POLY sheathed computer cable	Fixed useing
DJYJP4YP4	Copper conductor XLPE insulated steel-plastic tape pair and common shield POLY sheathed computer cable	Fixed useing
DJYJP4YP4-23	Copper conductor XLPE insulated steel-plastic tape pair and common shield steel tape armored POLY sheathed computer cable	Fixed useing
DJYJPYR	Copper conductor XLPE insulated copper wire braided pair POLY sheathed computer flexible cable	Fixed useing
DJYJP2YR	Copper conductor XLPE insulated copper tape pair POLY sheathed comouter flexible cable	Moveable using
DJYJP3YR	Copper conductor XLPE insulated aluminum-plastic tape pair POLY sheathed computer flexible cable	Moveable using
DJYJP2YRP2	Copper conductor XLPE insulated copper tape pair and common shield POLY sheathed computer flexible cable	Moveable using
DJYJP3YRP3	Copper conductor XLPE insulated aluminum-plastic tape pair POLY sheathed computer flexible cable	Moveable using
DJYJV	Copper conductor XLPE insulated PVC sheathed computer cable	Fixed useing
DJYJVR	Copper conductor XLPE insulated PVC sheathed computer flexible cable	Moveable using
DJYJV22	Copper conductor XLPE insulated steel tape armored PVC sheathed computer cable	Fixed useing
DJYJPV	Copper conductor XLPE insulated copper wire braided pair PVC sheathed computer cable	Fixed useing
DJYJPV22	Copper conductor XLPE insulated copper wire braided pair steel tape armored PVC sheathed computer cable	Fixed useing
DJYJPVP	Copper conductor XLPE insulated copper wire braided pair and common shield PVC sheathed computer cable	Fixed useing
DJYJPVRP	Copper conductor XLPE insulated copper wire braided pair and common shield PVC sheathed computer flexible cable	Moveable using
DJYJP2V	Copper conductor XLPE insulated copper tape pair PVC sheathed computer cable	Fixed useing
DJYJP2V22	Copper conductor XLPE insulated copper tape pair steel tape armored PVC sheathed computer cable	Fixed useing
DJYJP3V	Copper conductor XLPE insulated aluminum-plastic tape pair PVC sheathed computer cable	Fixed useing
DJYJP3V22	Copper conductor XLPE insulated aluminum plastic tape pair steel tape armored PVC sheathed computer cable	Fixed useing
DJYJP4V	Copper conductor XLPE insulated steel-plastic tape pair PVC sheathed computer cable	Fixed useing
DJYJP4V22	Copper conductor XLPE insulated steel-plastic tape pair steel tape armored PVC sheathed computer cable	Fixed useing
DJYJVP	Copper conductor XLPE insulated copper wire braided common shield PVC sheathed computer cable	Fixed useing
DJYJVP2	Copper conductor xIPE insulated copper tape common shield PVC sheathed computer cable	Fixed useing
DJYJVP3	Copper conductor XLPE insulated aluminum plastic tape common shield PVC sheathed computer cable	Fixed useing
DJYJVP4	Copper conductor XLPE insulated steel-plastic tape common shield PVC sheathed computer cable	Fixed useing
DJYJVP5	Copper conductor XLPE insulated aluminum-plastic tape copper wire braided common shield PVC sheathed computer cable	Fixed useing
DJYJVP22	Copper conductor XLPE insulated copper wire braided common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYJP2VP2	Copper conductor XLPE insulated copper tape pair and common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYJP2VP2-22	Copper conductor XLPE insulated copper tape pair and common shield steel tape armored steel tape armored PVC sheathed computer cable	Fixed useing
DJYJP3VP3	Copper conductor XLPE insulated aluminum-plastic tape pair and common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYJP3VP3-22	Copper conductor XLPE insulated aluminum plastic tape pair and common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYJP4VP4	Copper conductor XLPE insulated steel-plastic tape pair and common shield PVC sheathed computer cable	Fixed useing
DJYJP4VP4-22	Copper conductor XLPE insulated stee plastic tape pair and common shield steel tape armored PVC sheathed computer cable	Fixed useing
DJYJPVR	Copper conductor XLPE insulated copper wire braided pair PVC sheathed computer flexible cable	Moveable using
DJYJP2VR	Copper conductor XLPE insulated copper tape pair PVC sheathed computer flexible cable	Moveable using
DJYJP3VR	Copper conductor XLPE insulated aluminum plastic tape pair PVC sheathed computer flexible cable	Moveable using
DJYJP2VRP2	Copper conductor XLPE insulated copper tape pair and common shield PVC sheathed computer flexible cable	Moveable using
DJYJP3VRP3	Copper conductor XLPE insulated aluminum plastic tape pair and common shield PVC sheathed computer flexible cable	Moveable using
WDZA-DJYY	Copper conductor polyolefin insulated low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP	Copper conductor polyolefin insulated copper wire braided polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYYR	Copper conductor polyolefin insulated low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer flexible cable	Moveable using
WDZA-DJYY22	Copper conductor polyolefin insulated low-fume and no-halogen and flame-retardant steel tape armored polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYPYP	Copper conductor polyolefin insulated copper wire braiede pair and common shiela low-fume aha no halogen and flame retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYPYRP	Copper conductor polyolefin insulated copper wire braiede pair and common shiela low-fume and no halogen and flame retardant polyolefin sheathed Rank A computer cable	Moveable using
WDZA-DJYP2Y	Copper conductor polyolefin insulated copper tape pair low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYP3Y	Copper conductor polyolefin insulated aluminum-plastic tape pair low-fume and no-halogen and flame-retardant polvolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYP4Y	Copper conductor polyolefin insulated steel-plastic tape pair low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP2	Copper conductor polyolefin insulated copper tape common shield lowfume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP3	Copper conductor polyolefin insulated aluminum plastic tape common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP4	Copper conductor polyolefin insulated steel plastic tape common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP5	Copper conductor polyolefin insulated aluminum plastic tape copper wire braided common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYP2Y22	Copper conductor polvolefin insnlated cooper tape pair low-fume and no-halogen and flame-retardant steel tape armored polvolefin sheathed PVC inner sheathed Rank A computer cable	Fixed useing
WDZA-DJYP3Y22	Copper conductor polyolefin insulated aluminum plastic tape pair low-fume and no-halogen and flame-retardant steel tape armored polyolefin sheathed PVC inner sheathed Rank A computer cable	Fixed useing
WDZA-DJYP4Y22	Copper conductor polyolefin insulated steel-plastic tape pair low-fume and no-halogen and flame-retardant steel tape armored polyolefin sheathed PVC inner sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP2-22	Copper conductor polyolefin insulated copper tape common shield low-fume and no-halogen and flame-retardant steel tape armored polyolefin sheathed PVC inner sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP3-22	Copper conductor polyolefin insulated aluminumplastic common shield low-fume and no-halogen and flame-retardant steel tape armored polyolefin sheathed PVC innersheathed Rank A computer cable	Fixed useing
WDZA-DJYYP4-22	Copper conductor polyolefin insulated steel-plastic common shield low-fume and no halogen and flame-retardant steel tape armored polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYYP5-22	Copper conductor polyolefin insulated aluminum-plastic+copper wire braided common shield low-fume and no-halogen and flame-retardant steel tape armored polyolefin sheathed PVC innersheathed Rank A computer cable	Fixed useing
WDZA-DJYP2YP2	Copper conductor polyolefin insulated copper tape pair and common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYP3YP3	Copper conductor polyolefin insulated aluminum plastic tape pair and common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYP4YP4	Copper conductor polyolefin insulated steel-plastic tape pair and common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer cable	Fixed useing
WDZA-DJYP2YR	Copper conductor polyolefin insulated copper tape pair low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer flexible cable	Moveable using
WDZA-DJYP3YR	Copper conductor polyolefin insulated aluminum plastic tape pair low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer flexible cable	Moveable using
WDZA-DJYYRP2	Copper conductor polyolefin insulated aluminum plastic tape pair and common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer flexible cable	Moveable using
WDZA-DJYYRP3	Copper conductor polyolefin insulated aluminum plastic tape common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer flexible cable	Moveable using
WDZA-DJYYRP5	Copper conductor polyolefin insulated aluminum plastic tape copper wire braided common shield low-fume and no-halogen and flame-retardant polyolefin sheathed Rank A computer flexible cable	Moveable using
DJGG	Copper conductor silicon rubber-insulated silicon rubber sheathed computer cable	Fixed useing
DJGGR	Copper conductor silicon rubber-insulated silicon rubber-sheathed computer flexible cable	Moveable using
DJGPG	Copper conductor silicon rubber-insulated copper wire braided pair silicon rubber sheathed computer cable	Fixed useing
DJGPGR	Copper conductor silicon rubber-insulated copper wire braided pair silicon rubber sheathed computer flexible cable	Moveable using
DJGPGP	Copper conductor silicon rubber-insulated copper wire braided pair and common shield silicon rubber sheathed computer cable	Fixed useing
DJGPGRP	Copper conductor silicon rubber-insulated copper wire braided pair and common shield silicon rubber sheathed computer flexible cable	Moveable using
DJGP2G	Copper conductor silicon rubber-insulated copper tape pair silicon rubber sheathed computer cable	Fixed useing
DJGP2GR	Copper conductor silicon rubber-insulated copper tape pair silicon rubber sheathed computer flexible cable	Moveable using
DJGP3G	Copper conductor silicon rubber-insulated aluminum-plastic tape pair silicor rubber sheathed computer cable	Fixed useing
DJGP3GR	Copper conductor silicon rubber-insulated, aluminum-plastic tape pair silicon rubber sheathed computer flexible cable	Moveable using
DJGP4G	Copper conductor silicon rubber-insulated aluminum plastic tape pain silicon rubber sheathed computer cable	Fixed useing
DJGGP2	Copper conductor silicon rubber-insulated copper tape pair silicon rubber sheathed computer cable	Fixed useing
DJGGP3	Copper conductor silicon rubber-insulated a uminum plastic tape commor shield silicon rubber sheathed computer cable	Fixed useing
DJGGP4	Copper conductor silicon rubber-insulated steel-plastic tape pair silicon rubber sheathed computer cable	Fixed useing
DJGGP5	Copper conductor silicon rubber-insulated aluminum plastic tapef copper wire braided pair silicon rubber sheathed computer cable	Fixed useing
DJGP2GP2	Copper conductor silicon rubber-insulated copper tape pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJGP3GP3	Copper conductor silicon rubber-insulated aluminum-plastic pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJGP4GP4	Copper conductor silicon rubber-insulated steel-plastic pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJGF	Copper conductor fluoroplastic-insulated fluoroplastic sheathed computer cable	Fixed useing
DJGFR	Copper conductor fluoroplastic-insulated fluoroplastic sheathed computer flexible cable	Moveable using
DJGPF	Copper conductor fluoroplastic-insulated copper wire braided fluoroplastic sheathed computer cable	Fixed useing
DJGPFR	Copper conductor fluoroplastic-insulated copper wire braided fluoroplastic sheathed computer flexible cable	Moveable using
DJGPFP	Copper conductor fluoroplastic-insulated copper wire braided pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJGPFRP	Copper conductor fluoroplastic-insulated copper wire braided pair and common shield fluoroplastic sheathed computer flexible cable	Moveable using
DJGP2F	Copper conductor fluoroplastic-insulated copper tape pair fluoroplastic sheathed computer cable	Fixed useing
DJGP2FR	Copper conductor fluoroplastic-insulated copper tape pair fluoroplastic sheathed computer flexible cable	Moveable using
DJGP3F	Copper conductor fluoroplastic-insulated aluminumplastic tape paln fluoroplastic sheathed computer cable	Fixed useing
DJGP3FR	Copper conductor fluoroplastic-insulated aluminum-plastic tape pair fluoroplastic sheathed computer flexible cable	Moveable using
DJGP4F	Copper conductor fluoroplastic-insulated steel-plastic tape pain fluoroplastic sheathed computer cable	Fixed useing
DJGFP2	Copper conductor fluoroplastic-insulated copper tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJGFP3	Copper conductor fluoroplastic-insulated aluminumplastic tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJGFP4	Copper conductor fluoroplastic-insulated steel-plastic tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJGFP5	Copper conductor fluoroplastic-insulated aluminum-plastic tape copper wire braided common shield fluoroplastic sheathed computer cable	Fixed useing
DJGP2FP2	Copper conductor silicon rubber-insulated copper tape pair and comon shield fluoroplastic sheathed computer cable	Fixed useing
DJGP3FP3	Copper conductor silicon rubber-insulated aluminum-plastic pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJGP4FP4	Copper conductor silicon rubber-insulated steel-plastic pair and comnon shield fluoroplastic sheathed computer cable	Fixed useing
DJFF	Copper conductor fluoroplastic-insulated fluoroplastic sheathed computer cable	Fixed useing
DJFFR	Copper conductor fluoroplastic-insulated fluoroplastic sheathed computer flexible cable	Moveable using
DJFPF	Copper conductor fluoroplastic-insulated copper wire braided fluoroplastic sheathed computer cable	Fixed useing
DJFPFR	Copper conductor fluoroplastic-insulated copper wire braided fluoroplastic sheathed computer flexible cable	Moveable using
DJFPFP	Copper conductor fluoroplastic-insulated copper wire braided pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJFPFRP	Copper conductor fluoroplastic-insulated copper wire braided pair and common shield fluoroplastic sheathed computer flexible cable	Moveable using
DJFP2F	Copper conductor fluoroplastic-insulated copper tape pair fluoroplastic sheathed computer cable	Fixed useing
DJFP2FR	Copper conductor fluoroplastic-insulated copper tape pair fluoroplastic sheathed computer flexible cable	Moveable using
DJFP3F	Copper conductor fluoroplastic-insulated aluminumplastic tape pair fluoroplastic sheathed computer cable	Fixed useing
DJFP3FR	Copper conductor fluoroplastic-insulated aluminumplastic tape pair fluoroplastic sheathed computer flexible cable	Moveable using
DJFP4F	Copper conductor fluoroplastic-insulated steel-plastic tape pair fluoroplastic sheathed computer cable	Fixed useing
DJFFP2	Copper conductor fluoroplastic-insulated copper tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJFFP3	Copper conductor fluoroplastic-insulated aluminum-plastic tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJFFP4	Copper conductor fluoroplastic-insulated steel-plastic tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJFFP5	Copper conductor fluoroplastic-insulated aluminum-plastic tapecopper wire braided common shield fluoroplastic sheathed computer cable	Fixed useing
DJFP2FP2	Copper conductor silicon rubber-insulated copper tape pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJFP3FP3	Copper conductor silicon rubber-insulated aluminum-plastic pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJFP4FP4	Copper conductor silicon rubber-insulated steel-plastic pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJFG	Copper conductor fluoroplastic-insulated fluoroplastic sheathed computer cable	Fixed useing
DJFGR	Copper conductor fluoroplastic-insulated fluoroplastic sheathed computer flexible cable	Moveable using
DJFPG	Copper conductor fluoroplastic-insulated copper wire braided fluoroplastic sheathed computer cable	Fixed useing
DJFPGR	Copper conductor fluoroplastic-insulated copper wire braided fluoroplastic sheathed computer flexible cable	Moveable using
DJFPGP	Copper conductor fluoroplastic-insulated copper wire braided pair and common shield fluoroplastic sheathed computer cable	Fixed useing
DJFPGRP	Copper conductor fluoroplastic-insulated copper wire braided pair and common shield fluoroplastic sheathed computer flexible cable	Moveable using
DJFP2G	Copper conductor fluoroplastic-insulated copper tape pair fluoroplastic sheathed computer cable	Fixed useing
DJFP2GR	Copper conductor fluoroplastic-insulated copper tape pair fluoroplastic sheathed computer flexible cable	Moveable using
DJFP3G	Copper conductor fluoroplastic-insulated, aluminum-plastic tape pair fluoroplastic sheathed computer cable	Fixed useing
DJFP3GR	Copper conductor fluoroplastic-insulated, aluminum-plastic tape pair fluoroplastic sheathed computer flexible cable	Moveable using
DJFP4G	Copper conductor fluoroplastic-insulated steel-plastic tape palr fluoroplastic sheathed computer cable	Fixed useing
DJFGP2	Copper conductor fluoroplastic-insulated copper tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJFGP3	Copper conductor fluoroplastic-insulated, aluminum-plastic tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJFGP4	Copper conductor fluoroplastic-insulated, steel plastic tape common shield fluoroplastic sheathed computer cable	Fixed useing
DJFGP5	Copper conductor fluoroplastic-insulated aluminum-plastic tape copper wire braided common shield fluoroplastic sheathed computer cable	Fixed useing
DJFP2GP2	Copper conductor fluoroplastic insulated copper tape pair and common shield silicon rubber sheathed computer cable	Fixed useing
DJFP3GP3	Copper conductor fluoroplastic insulated aluminumplastic tape pair and commor shield silicon rubber sheathed computer cable	Fixed useing
DJFP4GP4	Copper conductor fluoroplastic insulated steel-plastic tape pair and common shield silicon rubber sheathed computer cable	Fixed useing

Production Range of cable

Type	Sectional area of conductors mm²	Element construction of finished cable
		Double wires	Three wires	Four wires
POLY insulated PVC insulated XLPE insulated non-halogen low-fumefire-resistant polyolefine insulated	0.75、1.0、1.5、2.5	1~50	1~24	1~10
Silicon rubber insulated	0.75、1.0、1.5、2.5	1~50	1~24	1~10
Fluoroplastic insulated	0.75、1.0	1~19	1~10	-
	1.5.2.5	1~10	1~10	-

Technical Data of cable

Area of conductor mm²	Conductor	D.C. resistance of copper conductor at 20℃ (Ω/km)≤				Insulation resistance at 20℃≥MΩ ·km
		Non-tinned		Tinned		PE、XLPE、F	PVC、G、WJI
		Class 1.2	Class 5	Class 1.2	Class 5
0.75	1,2,5	24.5	26.0	24.8	26.7	3000	25
1	1,2,5	18.1	19.5	18.2	20.0	3000	25
1.5	1,2,5	12.1	13.3	12.2	13.7	3000	25
2.5	1,2,5	7.41	7.98	7.56	8.21	3000	25

Q: 10. What is your company's business philosophy?

A: The company adheres to the strategy of "revitalizing the enterprise through science and technology," with a market-centered, sales-focused, customer-need-satisfying approach. It continuously optimizes its product structure, increases technological content, and ensures steadily improving product quality.

Q: 9. In which fields are your company's products applied?

A: The products cover multiple fields including electric power, new energy, transportation, communications, and engineering. The company has also continuously passed the qualification verification for power cables and conductors of the State Grid Corporation of China for many years.

Q: 8. What green and environmental certifications or initiatives does the company have?

A: The company has established an Environmental Management System, Energy Management System, Green Management System, and Social Responsibility Management System. It has completed product carbon footprint certification and obtained certifications such as "Green Manufacturing Enterprise," "China Energy-Saving and Environmental Protection Product," and "Carbon Neutrality Commitment Demonstration Unit."

Q: 7. Does the company focus on technological innovation? What recent patent achievements have there been?

A: The company actively implements the strategy of "revitalizing the enterprise through science and technology" and continuously increases R&D investment. As of 2026, it has disclosed 45 patents, including an important patent for "a halogen-free flame-retardant environmentally friendly cable and its preparation method."

Q: 6. What honors has your company received?

A: The company has established a municipal-level Engineering Technology Research Center and serves as a industry-academia-research cooperation demonstration base for Changzhou Institute of Technology. It is recognized as a provincial-level "Specialized, Refined, Distinctive, and Innovative" SME, a provincial-level green factory, a national high-tech enterprise, a digital workshop, a national intellectual property advantage enterprise, a quality integrity enterprise, a contract-abiding and creditworthy unit, an outstanding enterprise for industrial development, and a Jiangsu provincial private technology enterprise.

Q: 5. Does the company have sales and service networks across the country?

A: Yes. The company has set up sales outlets or offices in many major cities across China, such as Nanjing, Shanghai, Beijing, Guangzhou, Shenzhen, and Inner Mongolia, responsible for marketing and product after-sales service.

Q: 4. What is your company's production capacity?

A: The company currently has over 140 employees and an annual production capacity of 3 billion RMB scale.

Q: 3. Has the company obtained relevant quality system certifications?

A: Yes. The company has obtained ISO9001 Quality Management System, ISO14001 Environmental Management System, ISO45001 Occupational Health and Safety Management System, and GB/T23331 Energy Management System certifications. It has also obtained the national compulsory CCC certification and the National Industrial Production License.

WUXI GUANGHUAN CABLE CO., LTD.

Wuxi Guanghuan Cable Co., Ltd. is located in Yixing International Cable City, Jiangsu Province. Founded in 1998, the company is a private enterprise specializing in the production of various wires and cables. The company has a registered capital of RMB 201.8 million, covers an area of over 100,000 square meters, with a building area of more than 45,000 square meters. It is equipped with advanced production and testing facilities, employs over 140 staff members, and has an annual production capacity exceeding RMB 1 billion.

The company’s main products include: PVC-insulated wires and cables; rated voltage 0.6/1kV extruded insulated power cables, 6–35kV cross-linked polyethylene insulated power cables, 1kV and 10kV overhead insulated cables, plastic-insulated control cables, low-smoke halogen-free wires and cables; flame-retardant and fire-resistant wires and cables, network and computer cables, and more — covering over 10 product categories and more than 10,000 specifications.

The company has established sales outlets or offices in multiple major cities across China, responsible for marketing and product after-sales service.

The company has obtained the CCC certification (mandatory product certification issued by the China National Certification and Accreditation Administration) and the National Industrial Product Production License issued by the Jiangsu Provincial Bureau of Quality and Technical Supervision. Its wire and cable products have won wide acclaim and market recognition from customers, and have been awarded titles such as “Trustworthy Enterprise in Contract Performance”, “Jiangsu Provincial Trustworthy Product”, and “Jiangsu Provincial Private Science and Technology Enterprise” by relevant government authorities. In recent years, seizing the opportunity for rapid development, the company has actively implemented a strategy of “revitalizing the enterprise through science and technology”, adhering to the principle of “market-centered, sales-driven, customer demand-focused”. It has intensified product R&D efforts while optimizing product structure and enhancing technological content, striving to meet market demands to the greatest extent, thus steadily improving product quality.

CERTIFICATE DISPLAY

Company News 2024-04-01

The total greenhouse gas emissions of our company in 2023 are 3007.9282tCO2e.
According to the "Guidelines for Accounting and Reporting of Greenhouse Gas Emissions from Industrial Enterprises in Other Industries (Trial)" issued by the National Development and Reform Commission,...
Company News 2024-04-26

The carbon footprint of the wire and cable products produced by our company in 2023 is 7.9025tCO2e/kilometer
Our company has calculated the carbon footprint of our wire and cable products in accordance with ISO 14067:2018 "Requirements and Guidelines for Quantifying the Carbon Footprint of Greenhouse Gas Pro...
Company News 2024-02-27

Good news! Warm congratulations to our company for obtaining the high-tech enterprise certificate
Recently, the Office of the Leading Group for the Management of National High-tech Enterprise Recognition issued a notice on the filing of the batch of high-tech enterprises recognized by Jiangsu Prov...
Company News 2023-04-26

Wuxi Guanghuan Cable Co., Ltd. organizes "team building" themed activities
In order to enhance the cohesion of enterprise employees, reflect the spirit of teamwork, improve the level of team building work, and enhance work efficiency, company leaders Rui Xingjuan, Rui Lu, an...
Company News 2020-05-15

The installation of streetlight cables for the CKE project in Sri Lanka has begun
As of December 20th, more than 4000 meters of streetlight cables have been laid out for MCC Sri Lanka CKE High Speed Highway Project. In November and December, based on the actual construction progres...
Company News 2020-05-15

Three principles for selecting flame-retardant cables
Flame-retardant cable refers to a cable in which the sample is burned under specified test conditions, and after removing the test source, the spread of the flame is only within a limited range, and t...

Industry knowledge

X Facebook

Cable&Wire News
